When considering the installation of a modular home, taking great care in preparing the site and laying the proper foundation is a pivotal step.
The longevity and stability of every home – traditional or non-traditional – significantly depends on these initial stages.
Here, we explore the comprehensive process from site selection to the final quality checks before construction begins.
Key Takeaways
| Key Point | Description |
|---|---|
| Site Selection | Evaluate accessibility, drainage, and exposure to natural elements. |
| Soil Testing | Determines foundation type based on soil stability and water retention. |
| Compliance with Local Regulations | Essential steps for obtaining necessary building permits and adhering to codes. |
| Selection of Foundation Type | Match foundation (slab, crawl space, basement) to soil and climate conditions. |
| Site Preparation | From clearing land to curing concrete, outlining all crucial phases. |
| Foundation Installation | From excavation, concrete pouring, curing and drainage installation |
| Final Quality Checks | Need I say more? |
Essential Considerations for Site Preparation & setting up a Modular Home Foundation.
1. Site Selection
Choosing the right location for your modular home involves more than just the aesthetic appeal. Consider these 3 critical factors:
- ACCESSIBILITY
Ensures smooth transportation of modular sections and construction materials to the site.
Factors to Consider – Road size and quality, bridge clearances, and route accessibility to heavy loads. These can significantly impact the feasibility and cost of construction.
- DRAINAGE
Proper drainage is vital to prevent water accumulation that can undermine the foundation.
Assessment – Evaluate the natural slope of the land and existing drainage patterns. Consider the need for additional landscaping or civil engineering works to ensure effective water management.
- EXPOSURE TO NATURAL ELEMENTS
Protects the integrity and longevity of the home by considering the environmental impacts.
Factors to Consider – Sun direction, prevailing winds, and potential environmental hazards like flood zones or wildfire-prone areas. You may not have to worry about wild-fires in Ireland, but the first 3 considerations are extremely important.

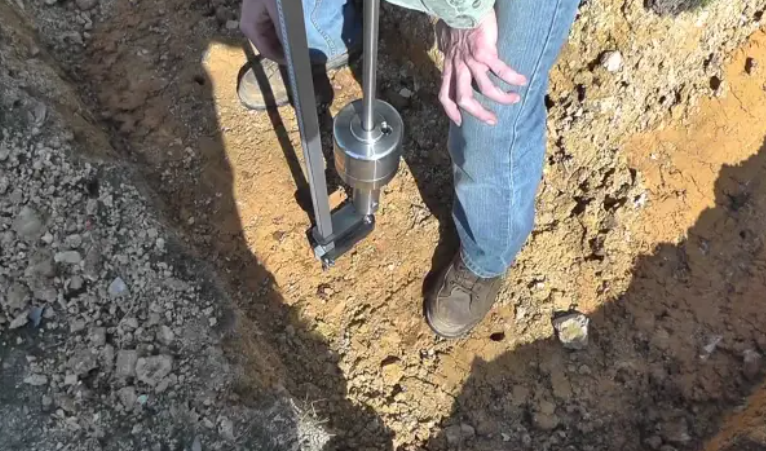

2. Soil Testing
- IN-DEPTH SOIL TESTING DETAILS
Includes taking multiple samples for analysis to determine the composition, be it clay, sand, silt, or loam. Each type reacts differently under pressure and moisture conditions.
- STABILITY & BEARING CAPACITY
Essential to ensure the soil can support the weight of the modular home without excessive settlement.
Assessment – Geotechnical testing measures the soil’s ability to bear and distribute loads, helping to decide on the appropriate foundation type and necessary reinforcements.
- WATER RETENTION
High water retention can lead to foundation issues like shifting, cracking, or buckling.
Evaluation Method – Percolation tests to determine the drainage rate of soil, which influences decisions on additional drainage solutions or special waterproofing requirements for the foundation.
3. Regulatory Compliance
Compliance with local building codes is not optional. Ensure you:
- Obtain all necessary permits especially tailored for modular homes.
- Your builder and you would both need to adhere to safety and building standards specified by the Department of Housing, Local Government and Heritage.
Read our blog post on Irish Planning Permissions HERE.
4. Select the Type of Foundation
Selecting the correct foundation involves understanding both your modular home’s design and the environmental conditions:
Types of Foundations Suitable for Modular Homes
1. SLAB FOUNDATIONS
A single layer of concrete poured directly on the ground.
- Pros -Cost-efficient, fast construction, and less vulnerability to pest infiltration.
- Cons – Not suitable for areas with severe frost, provides no under-home access for repairs or installations, and can be susceptible to cracking if soil shifts.
2. CRAWL SPACE FOUNDATIONS
Elevates the home slightly above the ground, providing a small space between the ground and the structure.
- Pros -Facilitates under-home access for utility repairs and adjustments, better air circulation which helps in preventing moisture-related issues.
- Cons – Can be prone to moisture problems if not properly insulated or ventilated, and might increase heating costs in colder climates.
3.BASEMENT FOUNDATIONS
Involves a full subterranean room that can be used for storage or additional living space.
- Pros – Adds significant value and usable space to a home, provides easy access to home systems, and offers a cooler area during hot seasons.
- Cons – Most expensive and complex to construct, potential for water ingress if not well-sealed and managed.
For the foundation that works best for you, discuss further with your chosen modular home builder. Learn More.
5. Site Preparation

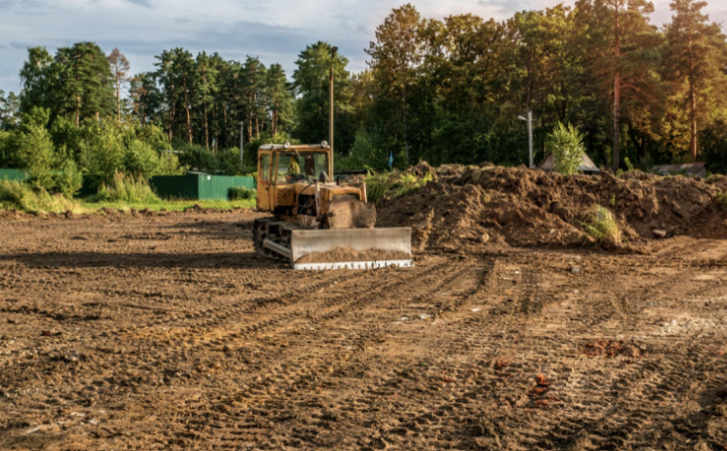

CLEARING THE LAND
- Task – Remove any debris, trees, or shrubs where the home will be placed.
- Importance – Ensures that nothing will interfere with the stability or placement of the foundation.
LEVEL THE SITE
- Task – Even out the ground to prepare for the foundation.
- Tools used – Graders and bulldozers.
- Importance – Misalignments in this step can lead to structural issues.
GRADING & PREPARATION FOR UTILITIES
- Task – Ensure access points for electricity, water, and drainage are established.
- Coordination – Often involves working with local utility providers.
- Layout and Marking – Use stakes and markers for precise outlines.
6. Install the Foundation.
EXCAVATION & FORMWORK
- Excavation – Dig to the required depth, ensuring stable sides.
- Formwork Installation – Set up forms to shape the foundation, whether pouring concrete or other materials.

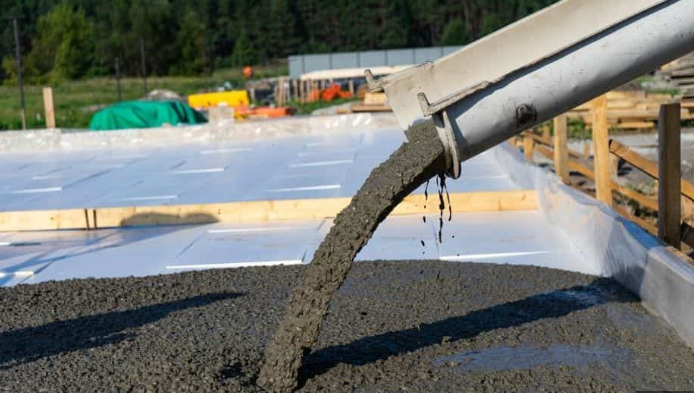

POURING CONCRETE & CURING
- Pouring Concrete – Fill forms evenly, ensure no air pockets.
- Curing – Allow adequate time for the concrete to set and harden; remove the forms only when the concrete is fully set.
WATERPROOFING & DRAINAGE INSTALLATION
- Implement necessary waterproofing membranes.
- Set up good drainage systems like French drains or gutter systems to direct water away from the foundation.
7. Quality Checks and Inspections
Throughout the process, execute rigorous checks and inspections to meet all design specifications and quality standards.
Ensure every stage is inspected by professionals to detect and address potential issues early. These checks prevent potential problems that could compromise the home’s structural integrity.
Additionally, checkpoints should be established to conduct post-construction inspections periodically, particularly after extreme weather conditions.
Conclusion
The foundation of your modular home is as crucial as the structure itself. It’s not merely about building a house but creating a dependable, lasting home.
Begin your journey of building your modular home with confidence, knowing that a solid foundation will lead to a stable and rewarding living experience.
Hopefully, this post was informative and you were able to learn something new from this blog post. Visit out blog for more!
